Firstly, some of the pre-processing was to large for HECToR, even when
ran in a small parallel queue, thus most pre-processing was performed
on Ness.
The method of decomposition was to set the virtual process topology using
npx=2, npy=2 and
npz=1,2,4,..., using a simple decompositition method.
This ensured that we had a balanced load-balance for the x-y plane at least.
The timing results for the 3 cases are presented graphically in
figure 5 and presented in table 5, where can see that
the code scales well for all 3 cases, where the optimum number of
cores is 64, 256 and 512 for the coarse, medium and fine cases, respectively.

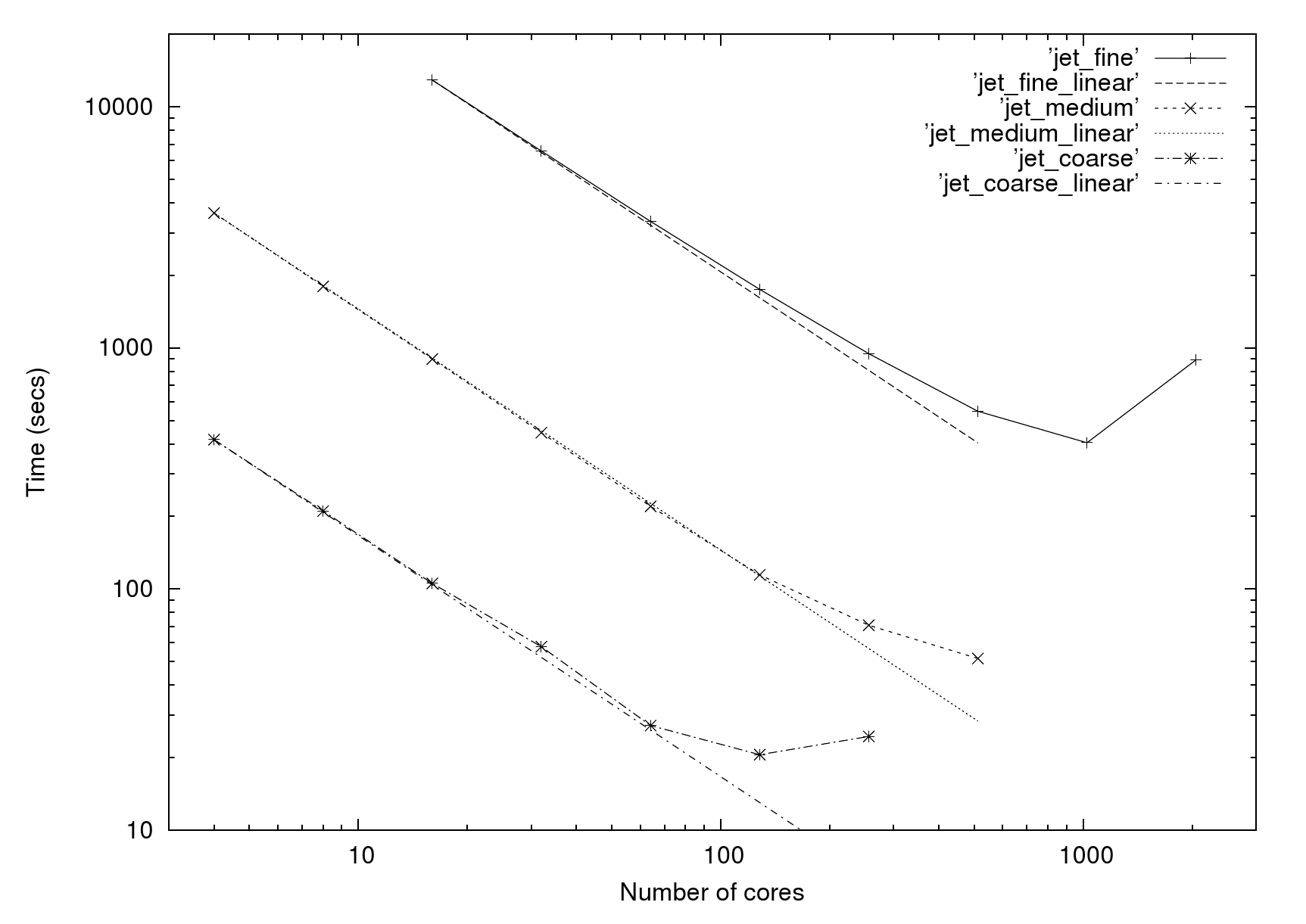

Figure:
Time (secs) for the three 3D Jet Break Up cases, where
jet_fine, jet_medium and jet_coarse are the times for the fine, medium
and coarse cases, and jet_fine_linear, jet_medium_linear and
jet_coarse_linear, are their respective perfect scaling curves.
|
Table 5:
Timing and performance results for 3D Jet Break Up
Number |
Coarse Mesh |
Regular Mesh |
Fine Mesh |
of cores |
Time (Perf) |
Time (Perf) |
Time (Perf) |
4 |
417.0 (-) |
3630.5 (1.18) |
- (-) |
8 |
211.1 (1.98) |
1804.6 (2.01) |
- (-) |
16 |
105.6 (2.00) |
900.9 (2.00) |
12931.4 (-) |
32 |
57.7 (1.83) |
445.4 (2.02) |
6568.7 (1.97) |
64 |
27.2 (2.12) |
220.5 (2.02) |
3354.1 (1.96) |
128 |
20.6 (1.32) |
114.7 (1.92) |
1752.0 (1.91) |
256 |
24.5 (0.84) |
70.9 (1.62) |
947.6 (1.85) |
512 |
- (-) |
51.6 (1.37) |
546.8 (1.73) |
1024 |
- (-) |
- (-) |
404.9 (1.35) |
2048 |
- (-) |
- (-) |
894.9 (0.45) |
|
