The performance of the distributed diagonaliser (PZHEEV) was compared to that
of the LAPACK routine ZHEEV for a range of matrix sizes.
Table 5.1:
Hermitian matrix diagonalisation times for the ScaLapack
subroutine PZHEEV.
|
time for various matrix sizes |
cores |
1200 |
1600 |
2000 |
2400 |
2800 |
3200 |
1 |
19.5s |
46.5s |
91.6s |
162.7s |
|
|
2 |
28.3s |
65.9s |
134.6s |
|
|
|
4 |
15.8s |
38.2s |
54.7s |
90.1s |
|
|
8 |
7.9s |
19.0s |
37.6s |
63.9s |
81.6s |
|
16 |
4.3s |
10.5s |
20.3s |
32.5s |
76.2s |
|
32 |
2.7s |
6.0s |
11.6s |
19.2s |
43.1s |
|
|
An improved parallel matrix diagonalisation subroutine,
PZHEEVR5.1, was made available
to us by Christof Vömel (Zurich) and Edward Smyth (NAG). This
subroutine consistently out-performed PZHEEV, as can be seen from
figure 5.1.

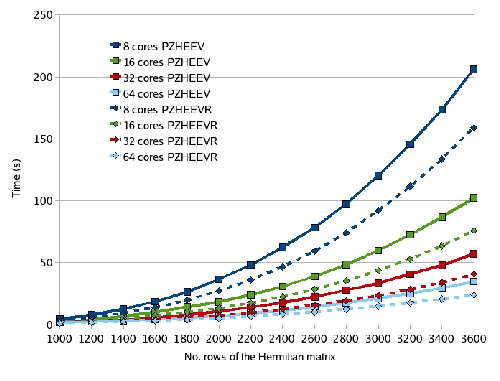

Figure 5.1:
A graph showing the scaling of the parallel matrix
diagonalisers PZHEEV (solid lines with squares) and PZHEEVR (dashed
lines with diamonds) with matrix size, for various numbers of cores
(colour-coded)
![\includegraphics[width=0.9\textwidth]{diag_results.eps}](img68.png) |
The ScaLAPACK subroutines are based on a block-cyclic distribution,
which allows the data to be distributed in a general way rather than
just by row or column. The timings for different data-distributions
for the PZHEEVR subroutine are given in table
5.2.
Table 5.2:
PZHEEVR matrix diagonalisation times for a 2200x2200 Hermitian
matrix distributed in various ways over 64 cores of
HECToR.
Cores used for distribution of |
|
Rows |
Columns |
Time |
1 |
64 |
6.48s |
2 |
32 |
6.45s |
4 |
16 |
5.80s |
8 |
8 |
5.92s |
|
The computational time
for diagonalisation of a
matrix
scales as
, so we fitted a cubic of the form
 |
(5.1) |
to these data for the 8-core runs. The results are shown in table
5.3. This cubic fit reinforces the empirical
evidence that the PZHEEVR subroutines have superior performance and
scaling with matrix size, since the cubic coefficient for PZHEEVR is
around 20% smaller than that of the usual PZHEEV subroutine.
Table 5.3:
The best-fit cubic polynomials for the PZHEEV and PZHEEVR
matrix diagonalisation times for Hermitian matrices from
to
distributed over 8 cores of
HECToR.
Coefficient |
PZHEEV |
PZHEEVR |
a |
-1.43547 |
-0.492901 |
b |
0.00137909 |
0.00107718 |
c |
9.0013e-08 |
-7.22616e-07 |
d |
4.31679e-09 |
3.53573e-09 |
|
