Maths Libraries (BLAS)

Much of the time spent in Castep is in the double-precision complex matrix-matrix multiplication subroutine ZGEMM. The orthogonalisation and subspace rotation operations both use ZGEMM to apply unitary transformations to the wavefunctions, and it is also used extensively when computing and applying the so-called non-local projectors. Although the unitary transformations dominate the asymptotic cost of large calculations, the requirement that benchmarks run in a reasonable amount of time means that they are rarely in this rotation-dominated regime. The orthogonalisation and diagonalisation subroutines also include a reasonable amount of extra work, including a memory copy and updating of meta-data, which can distort the timings for small systems. For these reasons we chose to concentrate on the timings for the non-local projector overlaps as a measure of ZGEMM performance, in particular the subroutine ion_beta_add_multi_recip_all which is almost exclusively a ZGEMM operation.

For the BLAS tests, the Pathscale compiler (version 3.0) was used throughout with the compiler options:

-O3 -OPT:Ofast -OPT:recip=ON -OPT:malloc_algorithm=1 -inline
-INLINE:preempt=ON

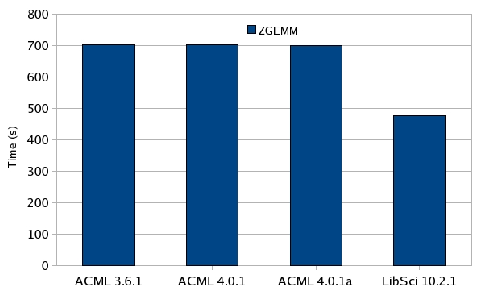

Figure 3.2: Graph showing the relative performance of the ZGEMM provided by the four maths libraries available to Castep on HECToR for the TiN benchmark. This benchmark performs 4980 projector-projector overlaps using ZGEMM. Castep's internal Trace module was used to report the timings.

As can be seen from figure 3.2 Cray's LibSci 10.2.1 was by far the fastest BLAS library available on HECToR, at least for ZGEMM.
